水洗机采用12辊平铺结构,上下两组喷淋管路, 36组高效水洗喷头。特殊的防水处理,使水不会进入主轴,不会损坏轴承。
18051415558
水洗机采用12辊平铺结构,上下两组喷淋管路, 36组高效水洗喷头。特殊的防水处理,使水不会进入主轴,不会损坏轴承。主轴套与框架之间采用了隔震处理,整机运行平稳,噪音小。

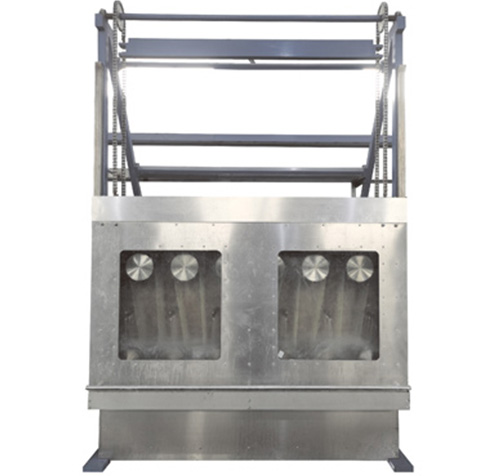

The washing machine has a 12-roll tile structure. Two sets of spray lines up and down.groups of washheads. Special waterproof treatment. Water does not enter the spindle36
the bearings will not be damaged. Vibration isolation is used between spindle and the frameThe machine is running steadily and the noise is low.
| 型号 Model | SXJ-215/12/320 |
|---|---|
| 框架 Takeup Frame | 主机架碳钢喷塑 外罩316L不锈钢 Carbon steel structure,the cover is 316L stainless steel |
| 张力控制 tension control | 30-800CN |
| 工艺速度 Winding Speed(m/min) | 50-800m/min |
| 水洗辊数量 Godet numbers | 12 |
| 水洗辊规格(直径*长度) Dia.*length | 215*320mm |
| 电机数量 number of motor | 4 |
| 电机功率 motor power | 3KW |
| 清洗水泵功率 washing pump power | 7.5KW |
| 设备外型尺寸(mm) The size of machine | 2400*1500*3680 |
| 备注：以上规格参数如有变更，恕不另行通知。 | |
