针对碳纤维不抗折，容易磨损，强度低的问题，该卷绕机对导丝，张力控制均做了特殊结构的设计。
18051415558

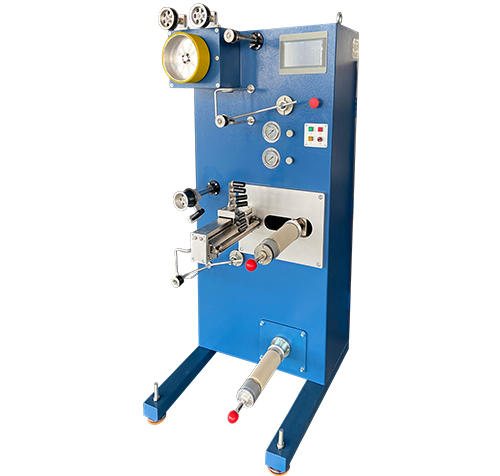

针对碳纤维不抗折，容易磨损，强度低的问题，该卷绕机对导丝，张力控制均做了特殊结构的设计。以满足纤维的卷绕要求。该机的缠绕花纹为电子卷绕比。
Addressing the issues of ceramic based fibers that are not resistant to bending, prone to wear, and have low strength. The winding machine has a special structural design for the guide wire and tension control, To meet the winding requirements of fibers. This machine is an electronic winding ratio.
| 型号 Model | SWC200/20 | |
|---|---|---|
| 控制方式 Control model | 伺服 Inverter+Servo system | |
| 卷绕纤度 Diner(Dtex) | 1K-24K | |
| 工艺速度 Winding Speed(m/min) | 3-20m/min | |
| 卷绕比控制 Winding ratio | 电子控制 Electronic | |
| 丝饼宽度 Bobbin width(mm) | 260mm (支持定做) | |
| 夹头直径 Diameter of chuck (mm) | 内径: 74mm | |
| 备注：以上规格参数如有变更，恕不另行通知。 | ||
